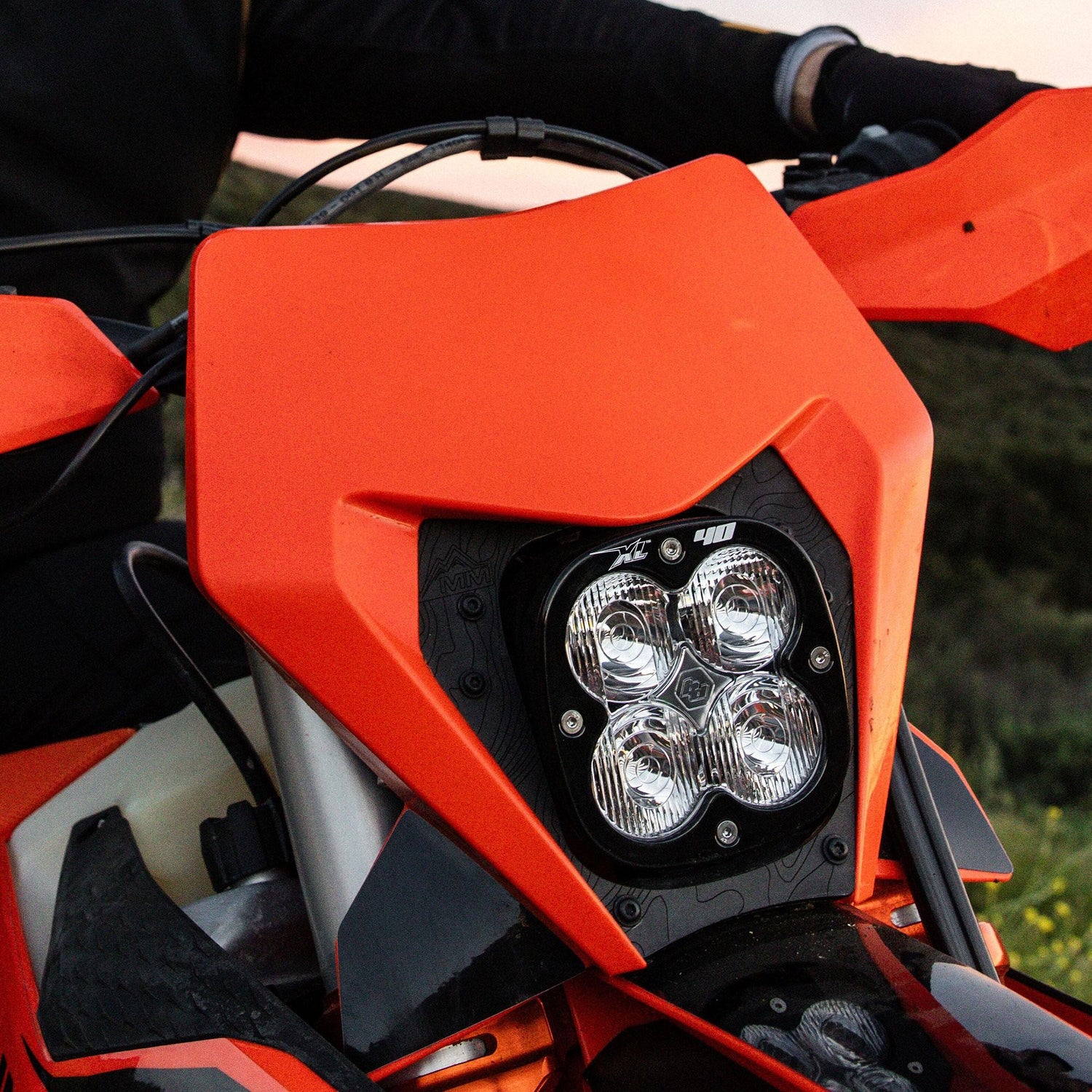

KTM XL40 LED Headlight Kit (24-on) w/ Dimmer Baja Desigins

Upgrade your off-road lighting with the Baja Designs XL40 LED Headlight Kit with Dimmer built for KTM XC-W/XW-F/XCF-W motorcycles. Derived from the powerhouse XL80, the XL40 delivers 5,224 lumens of trail-proven illumination to a wider range of bikes.

The included dimmer lets riders dial in exactly the brightness they need, with a fully variable range from 95 Degree down to 20 Degree output. Engineered for dirt bikes with lower-output OEM stators, the XL40 draws only 43.5W making it the ideal high-performance upgrade for riders who previously lacked a compatible premium option.

Paired with the signature XL Trail Lens, it delivers both vertical and horizontal beam coverage with excellent near-field and peripheral visibility. The Trail Lens redistributes center beam intensity to eliminate harsh hot spots improving clarity through elevation changes, vertical transitions, and sharp corners.

The result is a smooth, evenly distributed field of light that boosts confidence in demanding terrain. This kit replaces the OEM headlight unit and includes an a dimmer switch and Motominded mount for easy installation.

Backed by a 30-day satisfaction guarantee and Lifetime Limited Warranty.

Kit Includes:

• (1x) XL40 Trail Lens Clear w/ 2024+ OEM Connector
• (1x) Dimmer Switch (variable range: 95 Degree-20 Degree output)
• (1x) Motominded XL Bracket
• All Necessary Mounting Hardware

XL40 Specifications (per light):

• Lumens: 5,224 (Hi)/ 1,435 (Low)
• Watts/Amps: 43.5W/3.4A at 12.8V
• Modes: high beam, dimming feature (25 Degree brightness)

XL40 ELS Score:

• XL40, Trail lens, high beam: 92 degree /5.9/226'/5224
• XL40 Trail lens, low beam: 74 degree /5.9/119'/1435

The Baja Designs Advantage

• Satisfaction Guarantee 30-Day Money Back Guarantee
• Limited Lifetime Warranty Complete Purchase Protection
• uService Replaceable Lenses And Optics
• ClearView All The Light, Right Where You Need It
• MoistureBlock Waterproof, Rain Proof, Submersible
• CopperDrive Safely Driving LEDs at 100 Percent
• 5000K Daylight Less Driver Fatigue, Natural Color

• Specifications:
  • Product Type: XL40
  • Overvoltage Protection: Built-In
  • Mounting Hardware Included: Yes
  • Lighting Type: Forward Projecting
  • Lighting Technology: LED
  • Lighting Quantity: 4
  • Lighting Modes: Beam
  • Light Quantity: 1
  • Lens Material: Hardcoated Polycarbonate
  • Lens Color: Clear
  • Mounting Hardware Material: Stainless Steel
  • Universal or Specific: Universal
  • Wiring Harness Included: Yes
  • Wattage (W): 43.5
  • Housing Material: Powder Coated Cast Aluminum
  • Housing Color: Black
  • Description: Trail; Clear
  • Brightness (Lumens): 5,224 (Hi) / 1,435 (Low)
  • Bezel Material: Powder Coated Cast Aluminum
  • Beam Pattern: Trail
  • Average Rated Life (hr.): 49930
  • Amperage Rating (A): 3.4
  • Effective Lighting Score (ELS): High: 92 degree /5.9/226'/5224; Low; 74 degree /5.9/119'/1435

• Standards & Compliance:
  • Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
  • Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
  • Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)

• Dimensions:
  • Weight (lbs.): 2.45
  • Length (in.): 4.43
  • Height (in.): 4.43
  • Depth (in.): 3.65

Please verify your bike model and year before purchasing. If you have questions about fitment, contact us at info@elektrischesracing.com or use the chat below — we’re riders, and we’ll help you get the right part.

Most kits are plug-and-play. Installation guides are included in the box and available on our YouTube channel. For complex installations, we recommend watching our installation videos before starting.
