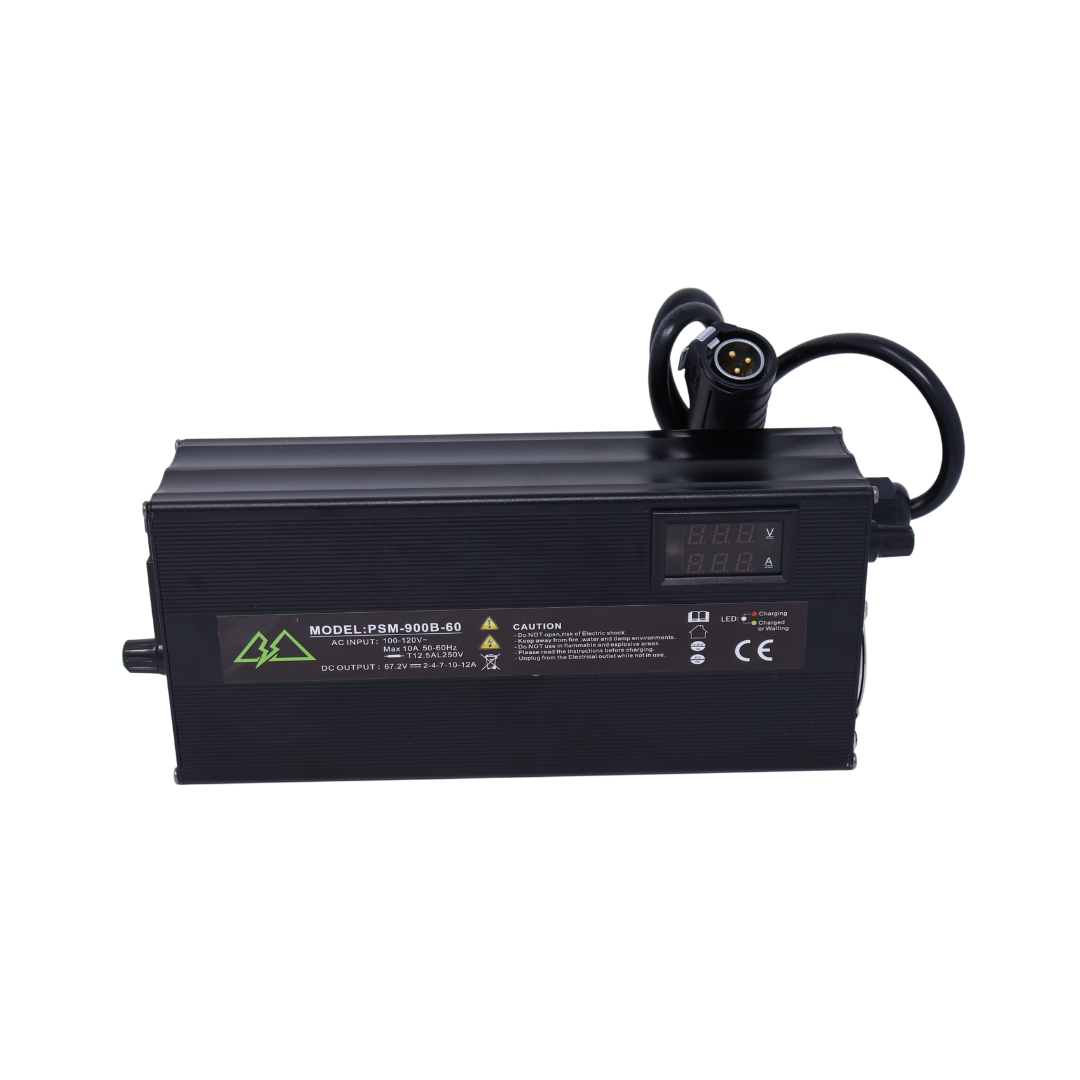

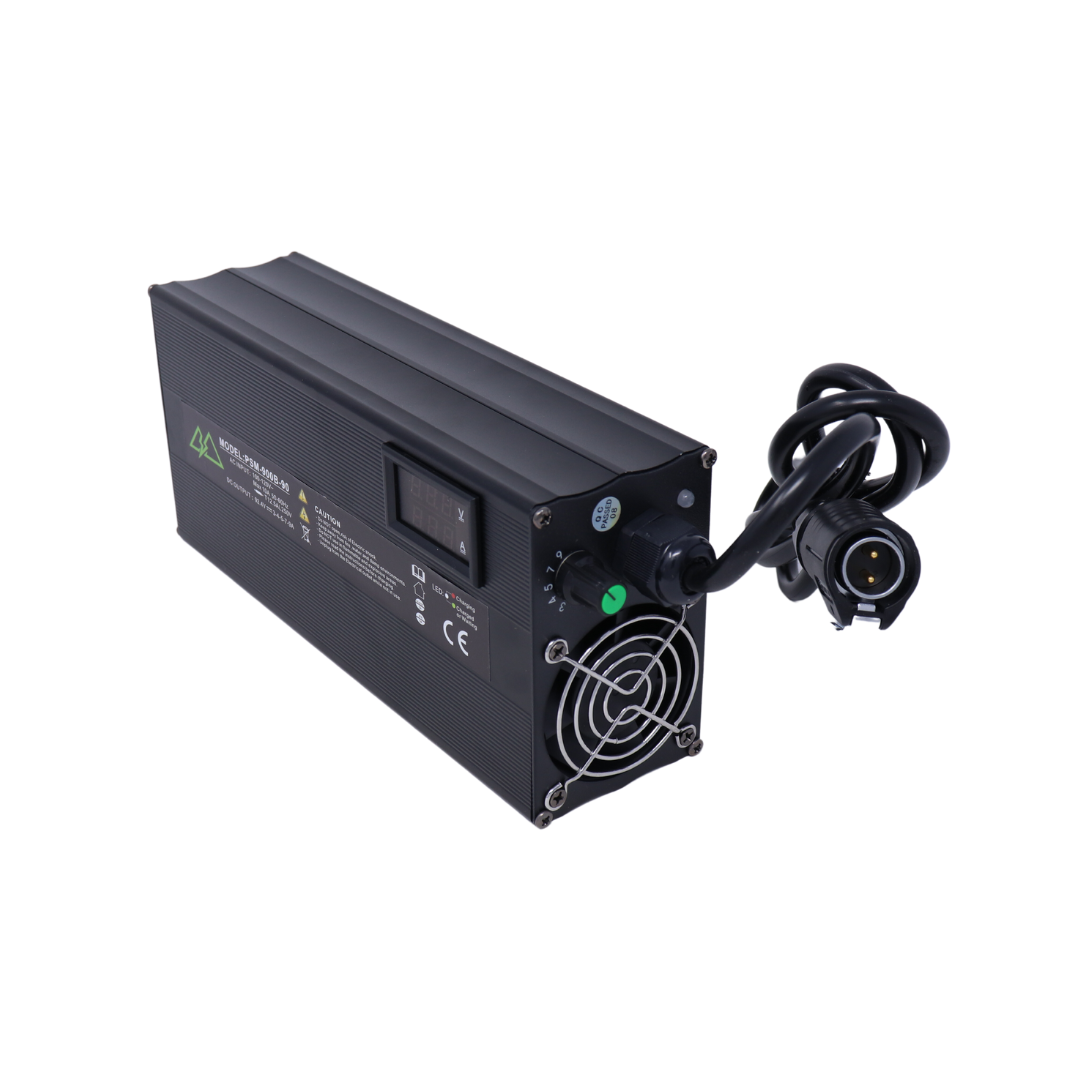

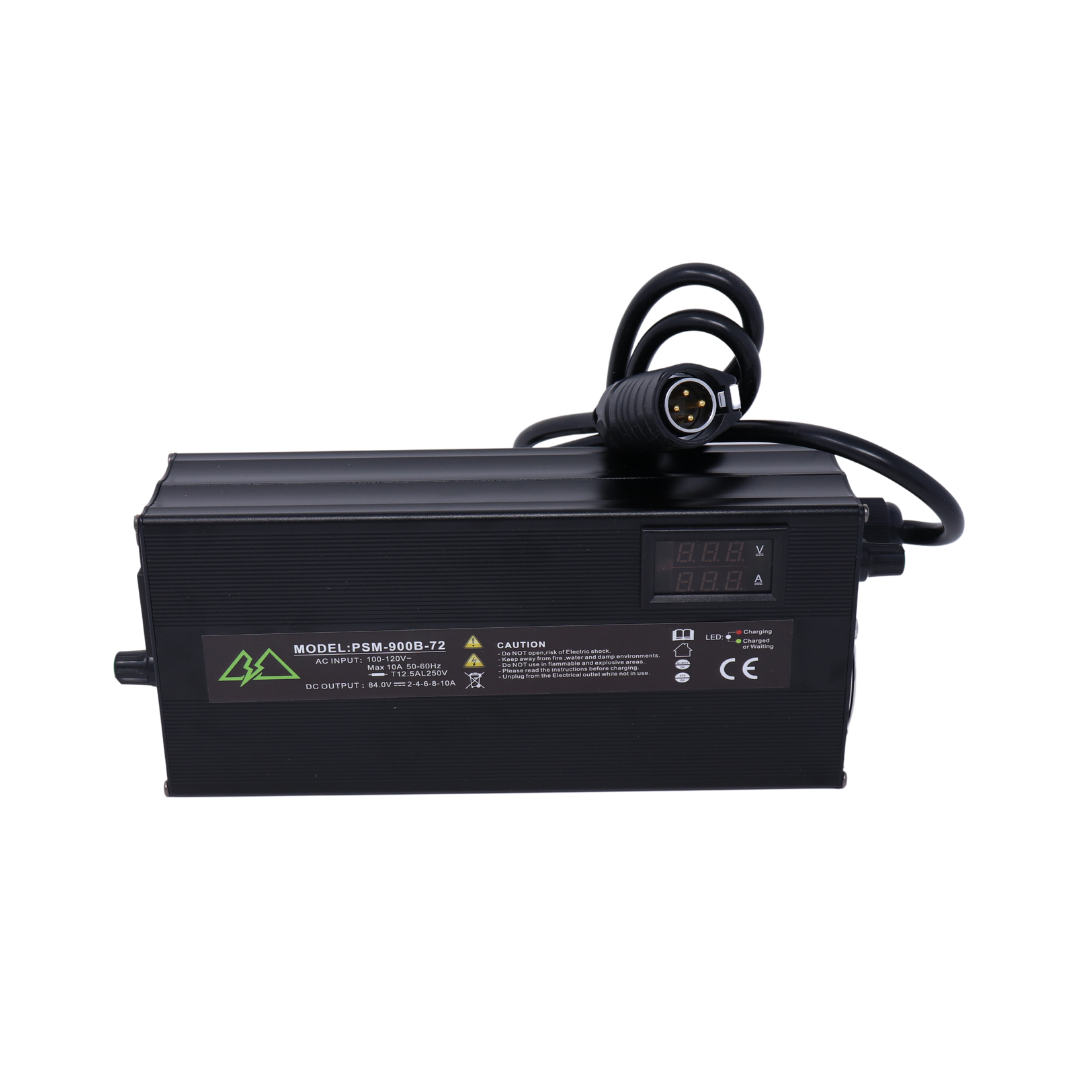

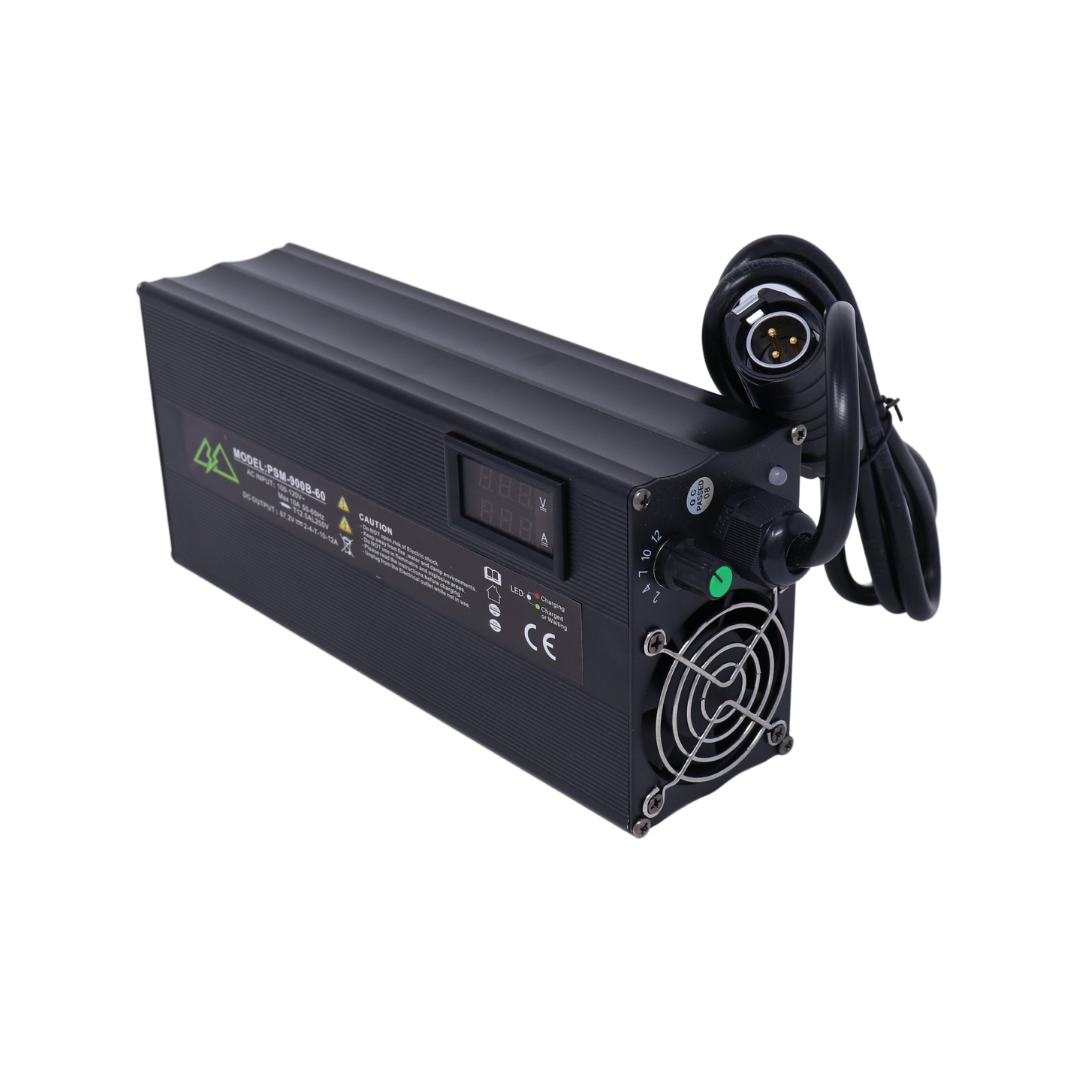

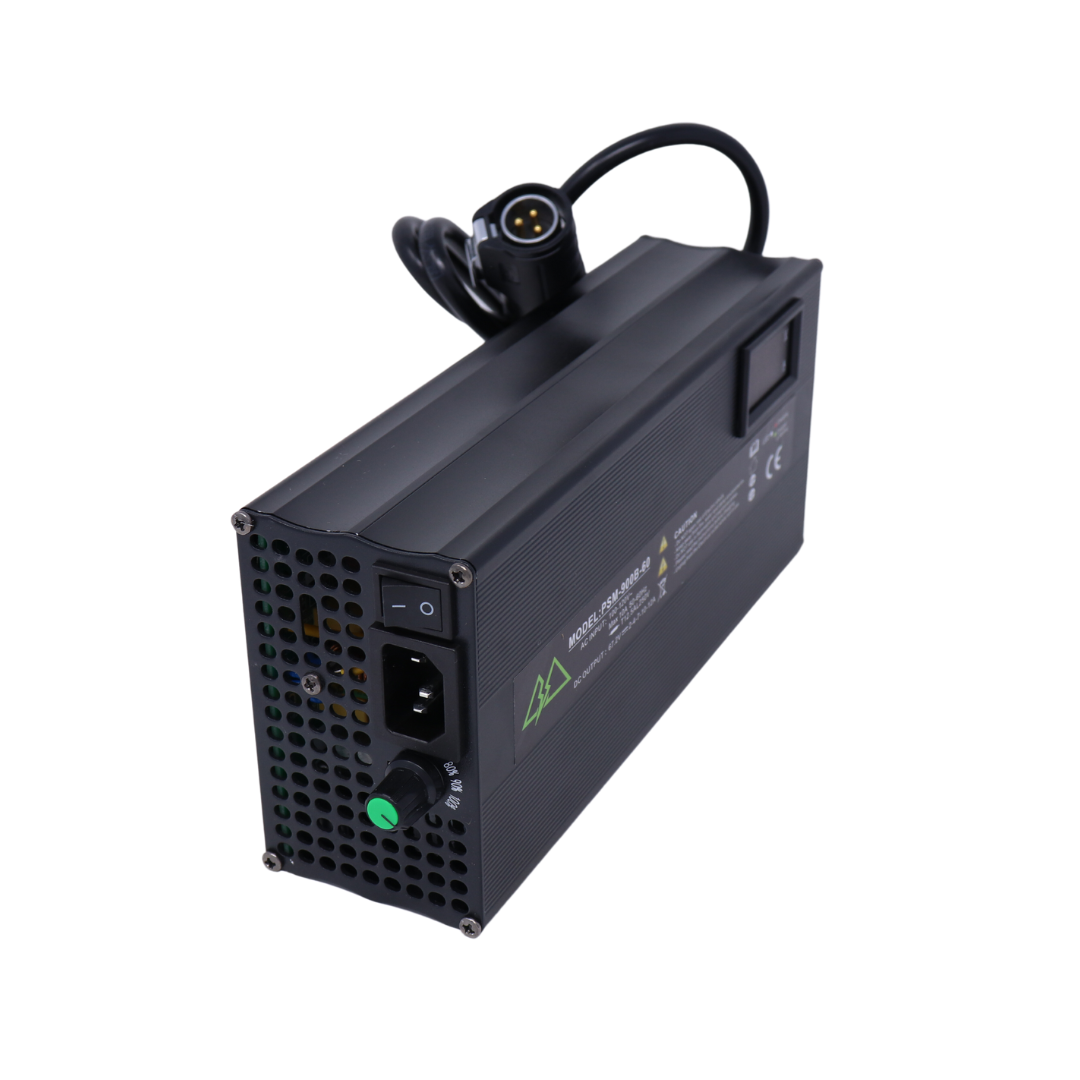

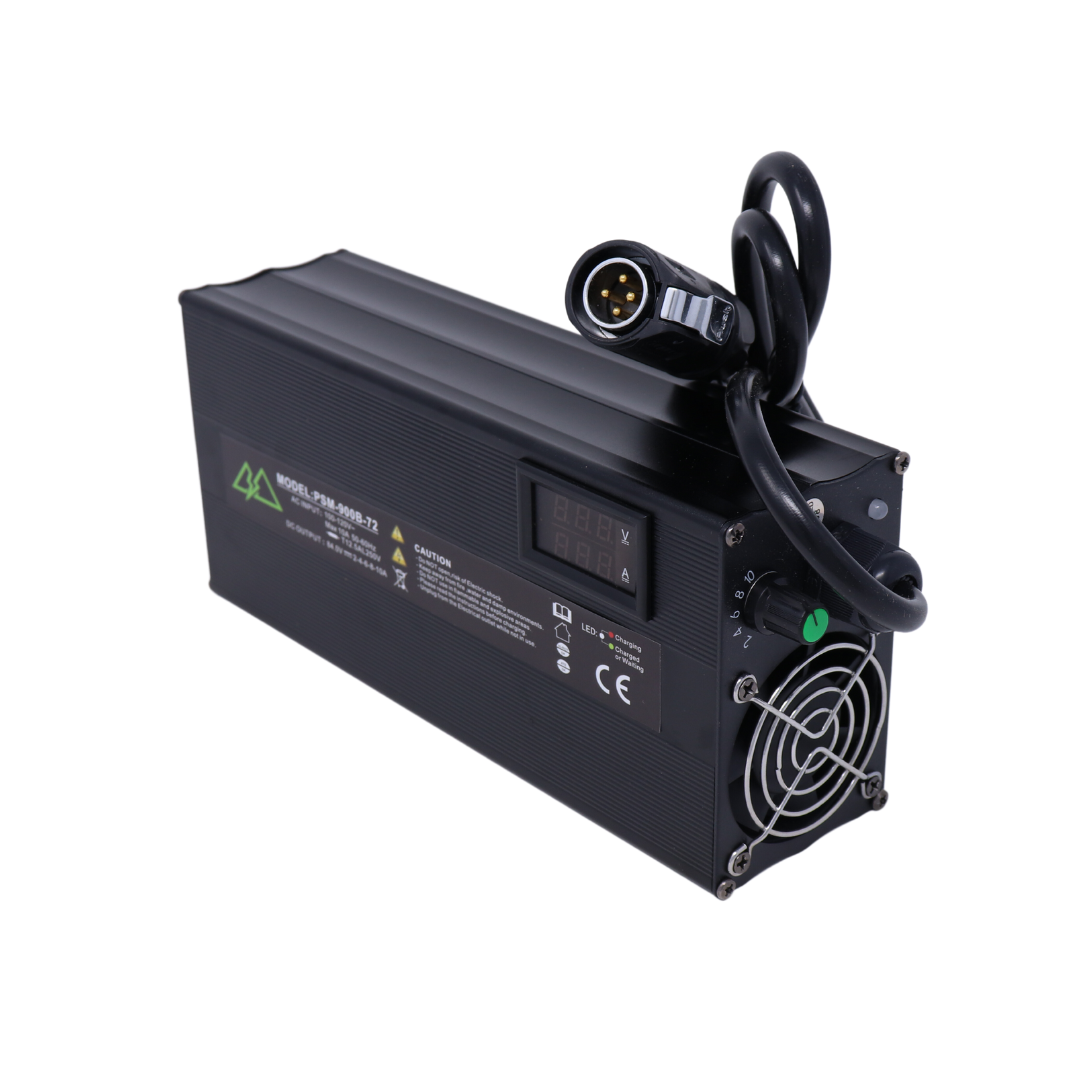

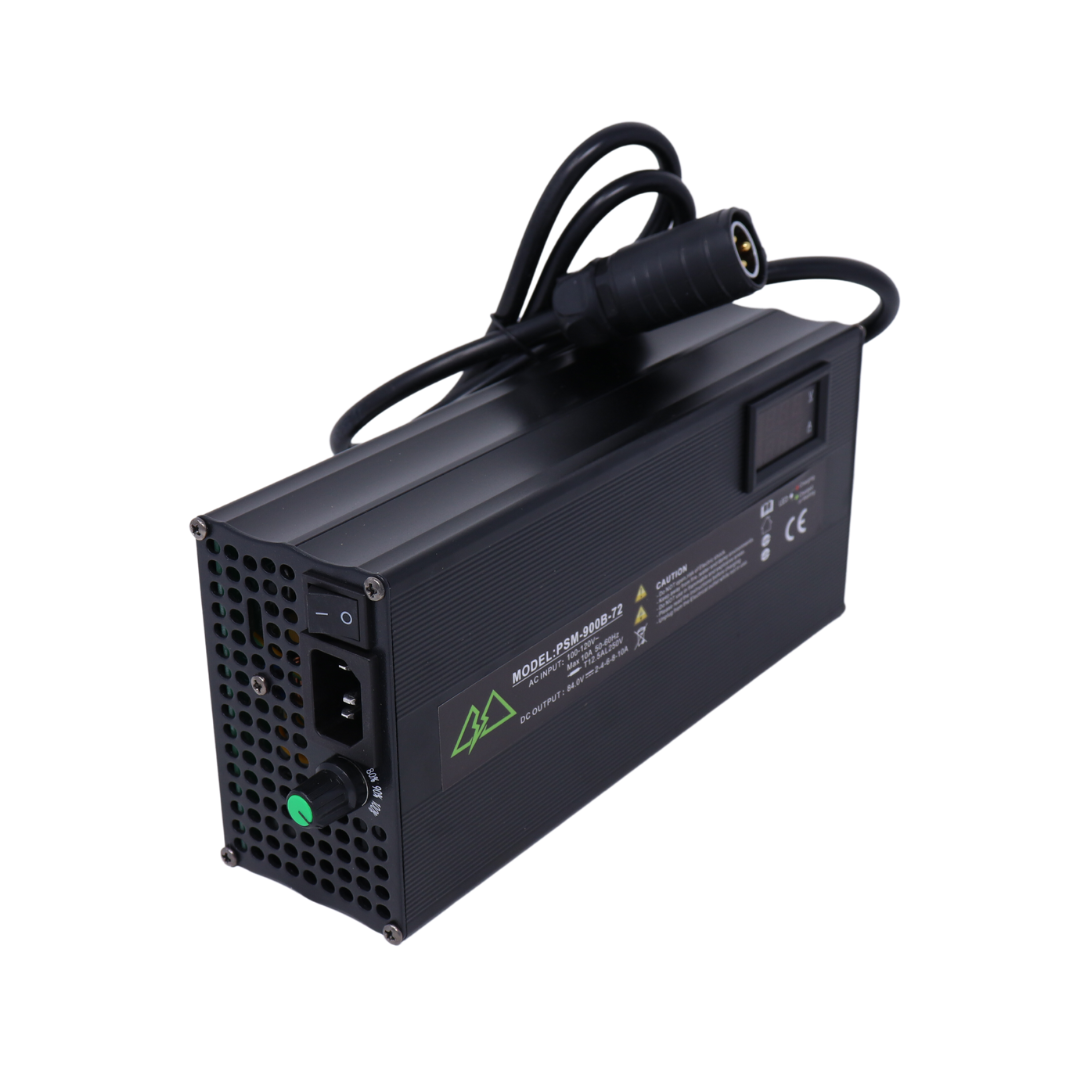

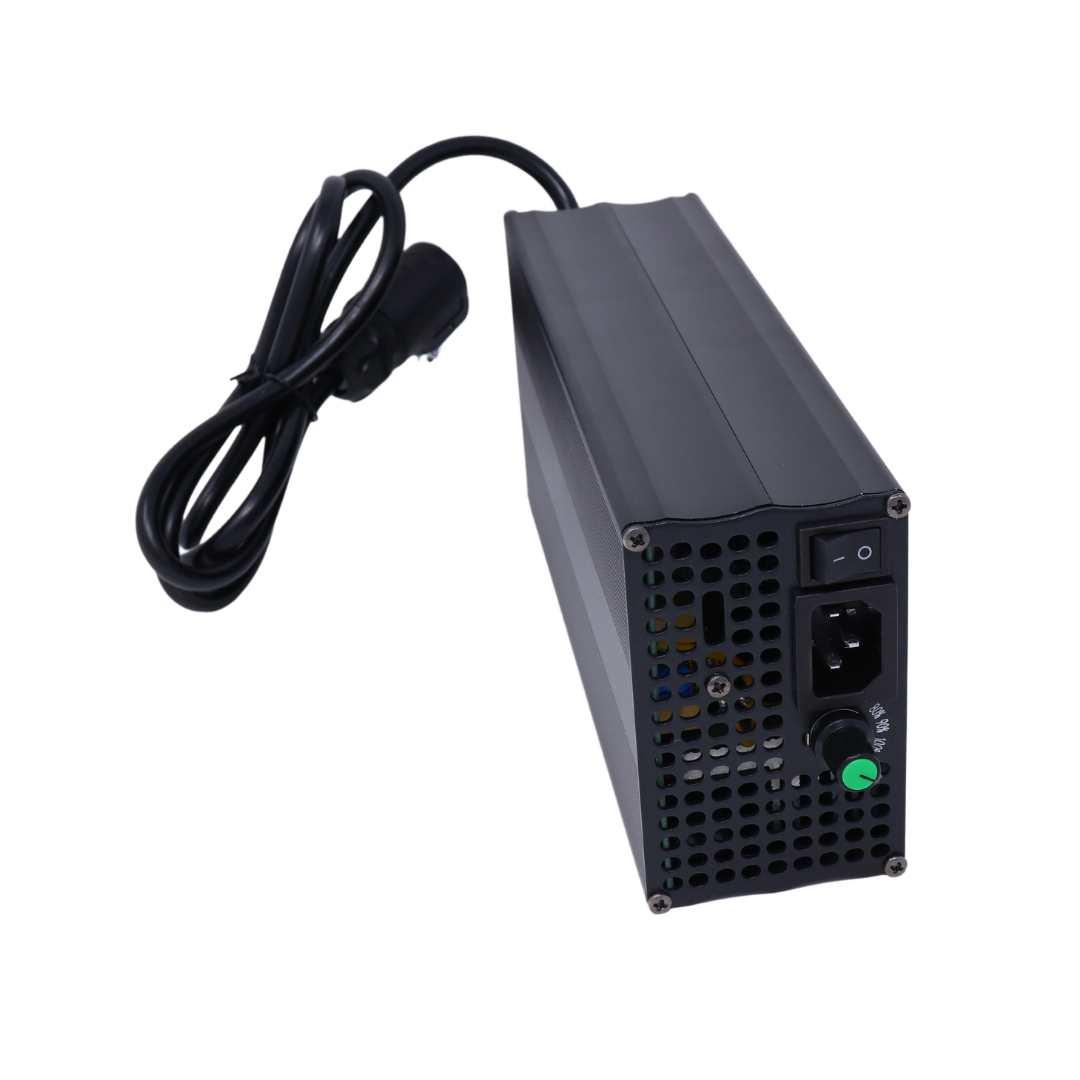

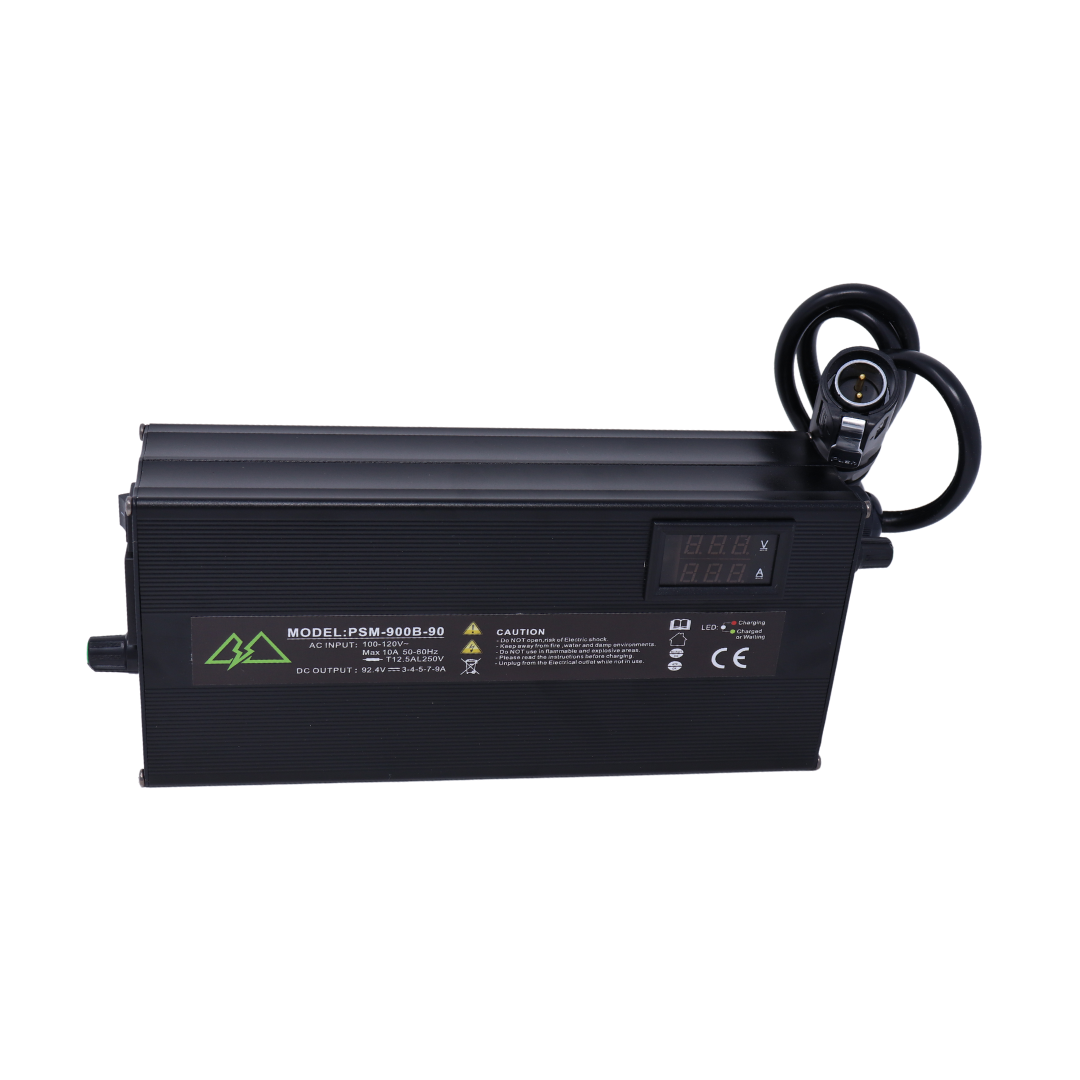

PSM Variable Chargers
SKU sku-45311065850177
Ships free (Lower 48). Shipping details
Will it fit?
Save your bike, truck or UTV to see whether this part is listed for it.
- Free shipping on this item (Lower 48). In-stock items leave California in 1 to 3 business days.
- 14-day returns on eligible items. Details
Enhanced Short-Circuit/Reverse Polarity Protection
The charger incorporates advanced safeguards against short circuits and reverse polarity. If a short circuit is detected or if the output wires are incorrectly connected to the battery prior to plugging in the AC mains, the charger will automatically deactivate. It will resume operation once the issue is resolved.
Over-Temperature Protection To prevent overheating
The charger will cease functioning if the internal temperature exceeds 70℃. Once the temperature drops to a safe level of 45℃, it will automatically resume its normal operation.
Digital Voltage & Current Display
An LCD screen provides real-time updates on the charger's output voltage and current, allowing users to monitor these values accurately.
Partial Charge Functionality
Users have the flexibility to set the desired charge level, choosing between 80%, 90%, or 100% capacity. This feature ensures customizable charging based on specific needs or preferences.
Adjustable Charging Speed: Fast or Slow Charge
The charger offers users the option to adjust the charging current. Selectable current options of 4, 6, and 8 amps cater to different charging requirements, enabling either a faster or slower charging rate as desired.
60v max output current - 1-12A
72v max output current - 1-10A
81v max output current - 1-9A
Intelligent Charging Capability
The charger is designed to be compatible with a wide range of charging curves and can dynamically adjust its output parameters accordingly. This intelligent charging feature ensures optimal charging performance and efficiency across various devices and battery types.
