Squadron 2.0 Pro Behind-the-Grille Light Kit Ford 2021-26 F-150 Raptor, 2024-26 F-150 Raptor 37/R
SKU 44-0017
Ships free (Lower 48). Shipping details
Will it fit?
Save your bike, truck or UTV to see whether this part is listed for it.
- Free shipping on this item (Lower 48). In-stock items leave California in 1 to 3 business days.
- Baja Designs warranty is handled directly by Baja Designs. Details

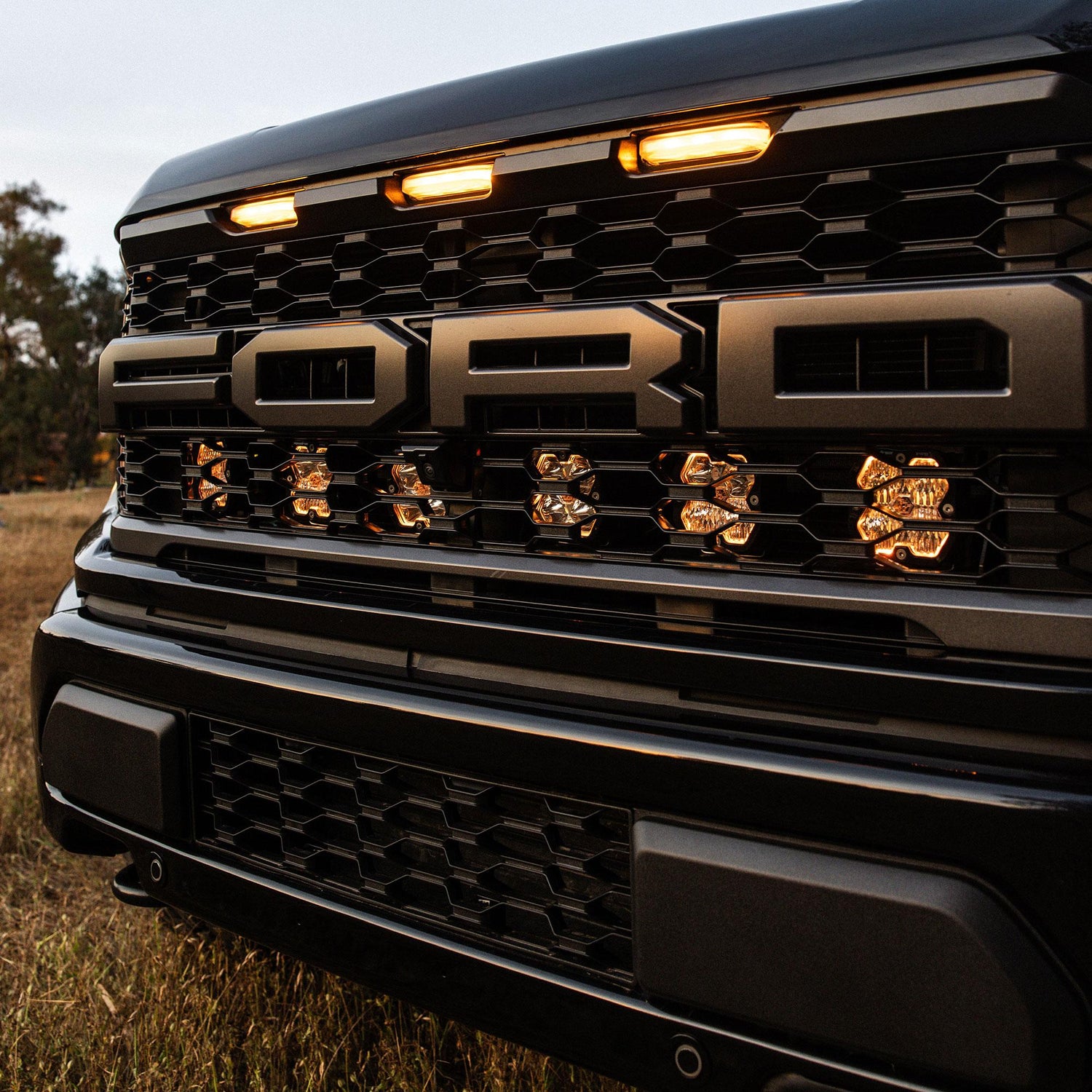

Baja Designs Squadron 2.0 Pro behind-the grille kit for the Ford Raptor is designed with both functionality and visual appeal in mind. This kit offers six all-new Squadron 2.0 Pro in multiple lens configurations, mounting brackets, and hardware. This kit provides light into lighting zones 1-4, making this the ultimate behind-the-grille kit.
Completely redesigned from the inside out, Squadron 2.0 Pro features next-generation optics and an impressive 5,921 lumens at 65W per light - a 21 percent increase in performance over the previous generation, with improved beam control and efficiency. The refined optical system projects a cleaner, farther-reaching, and wider beam while minimizing unwanted spill, giving Raptor owners more usable illumination for any terrain while not affecting the stock look.
New enhancements include updated lens patterns optimized for the redesigned optics, a durable 4-pin Deutsch connector, and an all-new user selectable backlight with nine selectable colors to match your Raptor's style. Enhanced uService features clip-in reflectors for secure, simple lens swaps, paired with a redesigned gasket for superior sealing and long-term weather protection.
We have also included an upfitter harness that will allow you to tap your lights into the factory upfitter switches. Backed by Baja Designs' Limited Lifetime Warranty, this behind-the-grille kit delivers premium performance, rugged reliability, and peace of mind for every Ford Raptor adventure.
Note: This kit will not work with adaptive cruise control relocation kits.
Squadron 2.0 Pro Features:
- Refined beam pattern provides greater distance, wider coverage, and reduced light spill
- Rgbw backlight with 9 selectable colors to match any vehicle
- New clip-in reflectors stay secure during lens changes, improving uService
- New gasket design improves sealing and protection against the elements
- Redesigned mounting bracket allows greater vertical adjustability
- Standard 4-pin Deutsch connector for improved wiring harness durability
Specifications (Per Light):
- Lumens: 5,921
- Watts/Amps: 65W/5.2A at 13.8V
- Operational Voltage: 12-32V
- IP69K Rated
Includes:
- (2x) Squadron 2.0 Pro - Wide Cornering Clear
- (2x) Squadron 2.0 Pro - Driving Combo Clear
- (2x) Squadron 2.0 Pro - Spot Clear
- (2x) Behind-the-Grille mounting brackets
- (1x) Wiring Harness
- (1x) Upfitter Wiring Harness
- All Necessary Mounting Hardware
The Baja Designs Advantage:
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Safely Driving LEDs at 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
- Specifications:
- Brightness (Lumens): 5,921 lm
- Amperage Rating (A): 65W / 4.7A at 13.8V*
- Voltage: Operating White Light Voltage: 10 - 36V; Operating Backlight Voltage: 11-14V
- Description: 9-Colors
- Terminal Connector: Deutsch
- Standards & Compliance:
- Standards/Compliance (Water Resistance): IP69K
- Dimensions:
- Depth (in.): 3.32 Inch
- Height (in.): 3.29 Inch
- Length (in.): 2.84 Inch
