Baja Designs

Squadron 2.0 Pro/S1 Fog Pocket Light Kit Ford 2021-26 F-150 Raptor

SKU 44-0020

Price $1,564.95

Ships free (Lower 48). Shipping details

Will it fit?

Save your bike, truck or UTV to see whether this part is listed for it.

  • Free shipping on this item (Lower 48). In-stock items leave California in 1 to 3 business days.
  • Baja Designs warranty is handled directly by Baja Designs. Details

The Baja Designs Squadron 2.0 Pro/S1 fog pocket light kit for the Ford Raptor will separate your truck from other Raptors on the trails. Designed for enhanced visibility and performance, this all-in-one kit is the perfect fog light option for those looking to add more light than stock. This LED light kit utilizes four Squadron 2.0 Pros and two S1s for exceptional illumination while navigating through challenging terrain.

The all-new Squadron 2.0 Pro features next-generation optics and an impressive 5,921 lumens at 65W per light - a 21 percent increase in performance over the previous generation, with improved beam control and efficiency. New enhancements to the Squadron 2.0 Pro include updated lens patterns optimized for the redesigned optics, a durable 4-pin Deutsch connector, and an all-new Rgbw backlight with nine selectable colors to match your Raptor's style. Enhanced uService features clip-in reflectors for secure, simple lens swaps, paired with a redesigned gasket for superior sealing and long-term weather protection.

Paired with the S1 offering 2,320 lumens each, this kit is packaged with everything you need to install and hit the trails without spending too much time in your garage. This kit includes two vehicle specific mounting brackets and wiring harnesses that allow use of your factory switch. Backed by Baja Designs' Limited Lifetime Warranty.

Squadron 2.0 Pro Features:

  • Refined beam pattern provides greater distance, wider coverage, and reduced light spill
  • User selectable backlight with 9 selectable colors to match any vehicle
  • New clip-in reflectors stay secure during lens changes, improving uService
  • New gasket design improves sealing and protection against the elements
  • Redesigned mounting bracket allows greater vertical adjustability
  • Standard 4-pin Deutsch connector for improved wiring harness durability

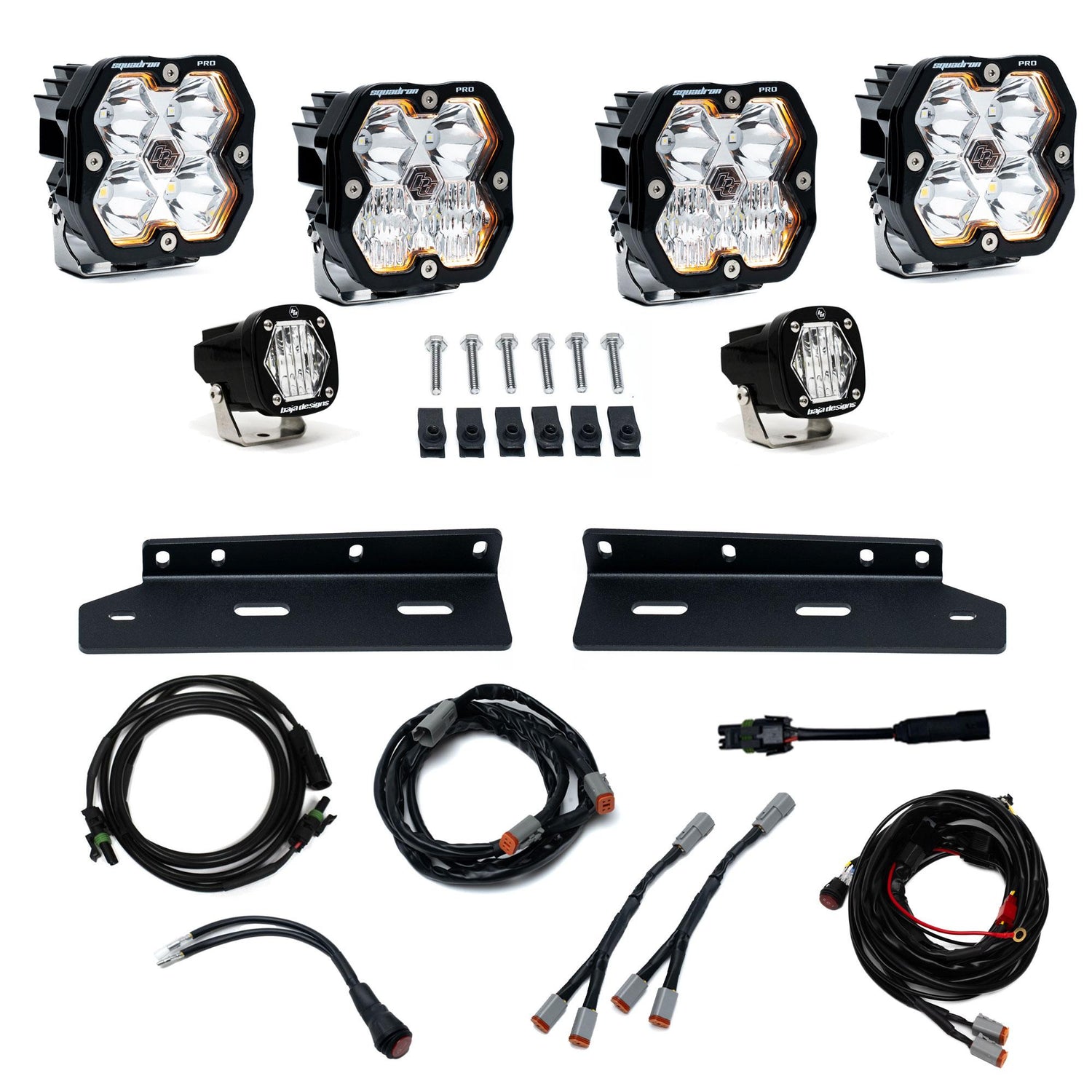

Includes:

  • (2x) S1 - Wide Cornering Clear
  • (2x) Squadron 2.0 Pro - Driving Combo Clear
  • (2x) Squadron 2.0 Pro - Spot Clear
  • (2x) Mounting Brackets
  • (2x) Adaptor Harness
  • (1x) 2-Light Splitter
  • (2x) Harness, Splitter 55 Inch
  • (1x) Upfitter Harness
  • All Necessary Mounting Hardware

Squadron 2.0 Pro Specifications (Per Light):

  • Lumens: 5,921
  • Watts/Amps: 65W/4.7A

S1 Specifications (Per Light):

  • Lumens: 2,320
  • Watts/Amps: 20W/1.42A

The Baja Designs Advantage:

  • Limited Lifetime Warranty - Complete Purchase Protection
  • uService - Replaceable Lenses and Optics
  • ClearView - All The Light, Right Where You Need It
  • MoistureBlock - Waterproof, Rain Proof, Submersible
  • CopperDrive - Safely Driving LEDs at 100 percent
  • 5000K Daylight - Less Driver Fatigue, Natural Color
Shipping and returns

In-stock items dispatch from California in 1 to 3 business days. Free shipping over $200 to the Lower 48; other rates are shown at checkout.

Returns: eligible items can be returned within 14 days with a 10% restocking fee. Baja Designs and Warp 9 items are not returnable through Elektrisches Racing. Their manufacturer warranty and any manufacturer guarantee are handled directly by the manufacturer, and we'll help you file a claim. Full details are in our Refund Policy.

Fitment help

Not sure it fits your bike, truck or UTV? Email support@elektrischesracing.com with your make, model and year before you buy.
