Baja Designs

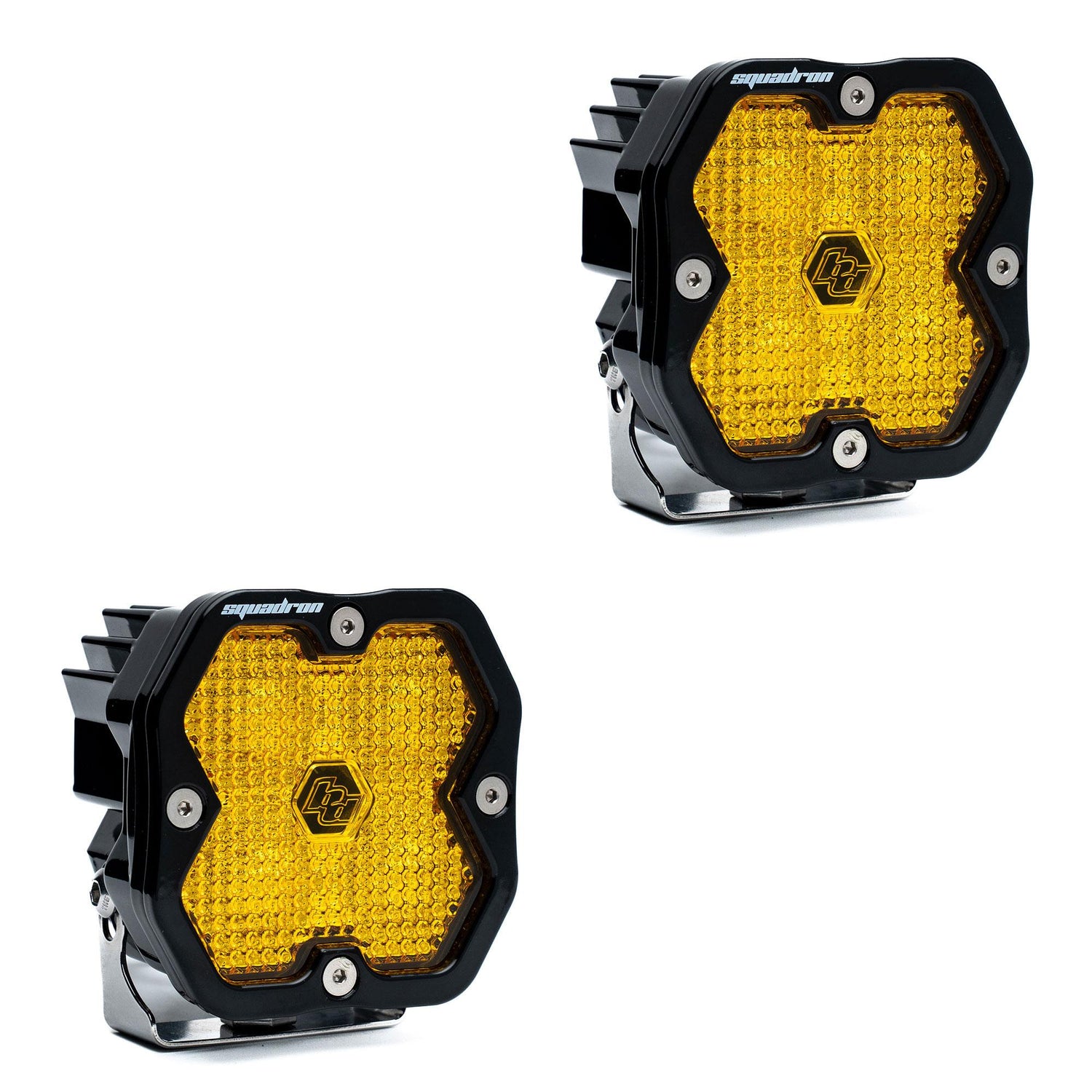

Squadron 2.0 Sport Black LED Auxiliary Light Pod Kit - Universal

SKU 55-7816-2

Price $309.95

Ships free (Lower 48). Shipping details

Will it fit?

Save your bike, truck or UTV to see whether this part is listed for it.

Beam Pattern: Work/Scene
Lens Color: Baja Amber
  • Free shipping on this item (Lower 48). In-stock items leave California in 1 to 3 business days.
  • Baja Designs warranty is handled directly by Baja Designs. Details

Squadron 2.0 Sport is the next evolution of our most trusted compact LED light pod. Squadron 2.0 Sport features a modern exterior, next-generation optics, and a powerful 3,200-lumen output at 30W - delivering a 26 percent increase in performance over the previous generation with improved beam control and efficiency. Precision-engineered optics create a refined beam pattern that throws light farther and wider while minimizing wasted spill, giving you more usable illumination exactly where you need it.

Squadron 2.0 Sport delivers superior clarity and confidence after dark. Every detail has been upgraded to raise the bar for small LED light pods while maintaining the proven reliability that defines Baja Designs. The new gloss-black aluminum housing delivers a bold, modern look while retaining the unmistakable Baja Designs style.

Squadron 2.0 Sport stands at the top of its class. New features include updated lens patterns optimized for the redesigned optics, a rugged 4-pin Deutsch connector for enhanced durability, and an all-new Rgbw backlight with nine selectable colors to match your vehicle's style. Improved uService components include clip-in reflectors that stay secure during lens swaps, plus a redesigned gasket for better sealing and long-term protection from the elements.

A new mounting bracket provides increased vertical adjustability for precise aiming. Squadron 2.0 Sport is engineered for enthusiasts who demand uncompromising night-time visibility. Like all Baja Designs products, it's backed by Baja Designs' Limited Lifetime Warranty for complete peace of mind.

Features:

  • Refined beam pattern provides greater distance, wider coverage, and reduced light spill
  • Rgbw backlight with 9 selectable colors to match any vehicle
  • New clip-in reflectors stay secure during lens changes, improving uService
  • New gasket design improves sealing and protection against the elements
  • Redesigned mounting bracket allows greater vertical adjustability
  • Standard 4-pin Deutsch connector for improved wiring harness durability

Squadron 2.0 Sport Specifications:

  • Lumens: 3,200
  • Watts/Amps: 30W/2.2A at 13.8V
  • Operational Voltage: 12-32V

Els Scores:

  • Squadron 2.0 Sport Spot Clear: Els 84 Degree/5.1/398/2645
  • Squadron 2.0 Sport Driving Combo Clear: Els 106 Degree/6.8/296/2670
  • Squadron 2.0 Sport Wide Cornering Clear: Els 118 Degree/7.4/128/2664
  • Squadron 2.0 Sport Work/Scene Clear: Els 136 Degree/7.9/47/2475

Includes:

  • (2x) Squadron 2.0 Sport Light Pods
  • (1x) Wiring Harness
  • All Necessary Mounting Hardware
  • Specifications:
    • Brightness (Lumens): 3,200 lm
    • Amperage Rating (A): 30W / 2.2A at 13.8V
    • Voltage: Operating White Light Voltage: 10 - 36V; Operating Backlight Voltage: 11-14V
    • Description: Backlight: 9-Colors
    • Terminal Connector: Deutsch
  • Standards & Compliance:
    • Standards/Compliance (Water Resistance): IP69K
  • Dimensions:
    • Depth (in.): 3.32 Inch
    • Height (in.): 3.29 Inch
    • Length (in.): 2.84 Inch
