Baja Designs

XL40 LED KTM 690 (2019-On) Kit

SKU 82-0005

Price $446.95

Ships free (Lower 48). Shipping details

Will it fit?

Save your bike, truck or UTV to see whether this part is listed for it.

  • Free shipping on this item (Lower 48). In-stock items leave California in 1 to 3 business days.
  • Baja Designs warranty is handled directly by Baja Designs. Details

The Baja Designs XL40 (D/C) LED Headlight Kit for the KTM 690 Enduro R/SMC-R motorcycles is an all-new, moto-specific LED headlight that delivers outstanding performance for trail riders, Dual Sport enthusiasts, and desert riders who need reliable visibility when daylight turns to night. Inspired by the performance of the XL80, the XL40 carries forward the same trail-proven pedigree, delivering 5,224 lumens of usable illumination to a wider range of motorcycles.

Engineered specifically for dirt bikes equipped with lower-output OEM stators, the XL40 draws just 43.5W-making it a powerful lighting upgrade without a large power draw. With the low beam functionality of the XL40, riders can reduce output by 25 Degree in low beam mode, producing 1,434 lumens when full output is not needed.

Paired with our signature XL Trail Lens, the XL40 produces both a vertical and horizontal beam pattern with exceptional near-field and peripheral visibility. Designed for tight, technical singletrack, the Trail Lens redistributes center beam intensity to eliminate harsh hot spots, improving clarity through vertical transitions, quick elevation changes, and tight corners.

The result is a smooth, evenly distributed field of light that inspires confidence in the most demanding terrain. The XL40 LED Headlight kit replaces the stock OEM headlight and comes with our Hi/Low harness, making this a plug-and-play kit for ease of installation.

Every kit is backed by Baja Designs' Limited Lifetime Warranty, ensuring complete peace of mind on every ride.

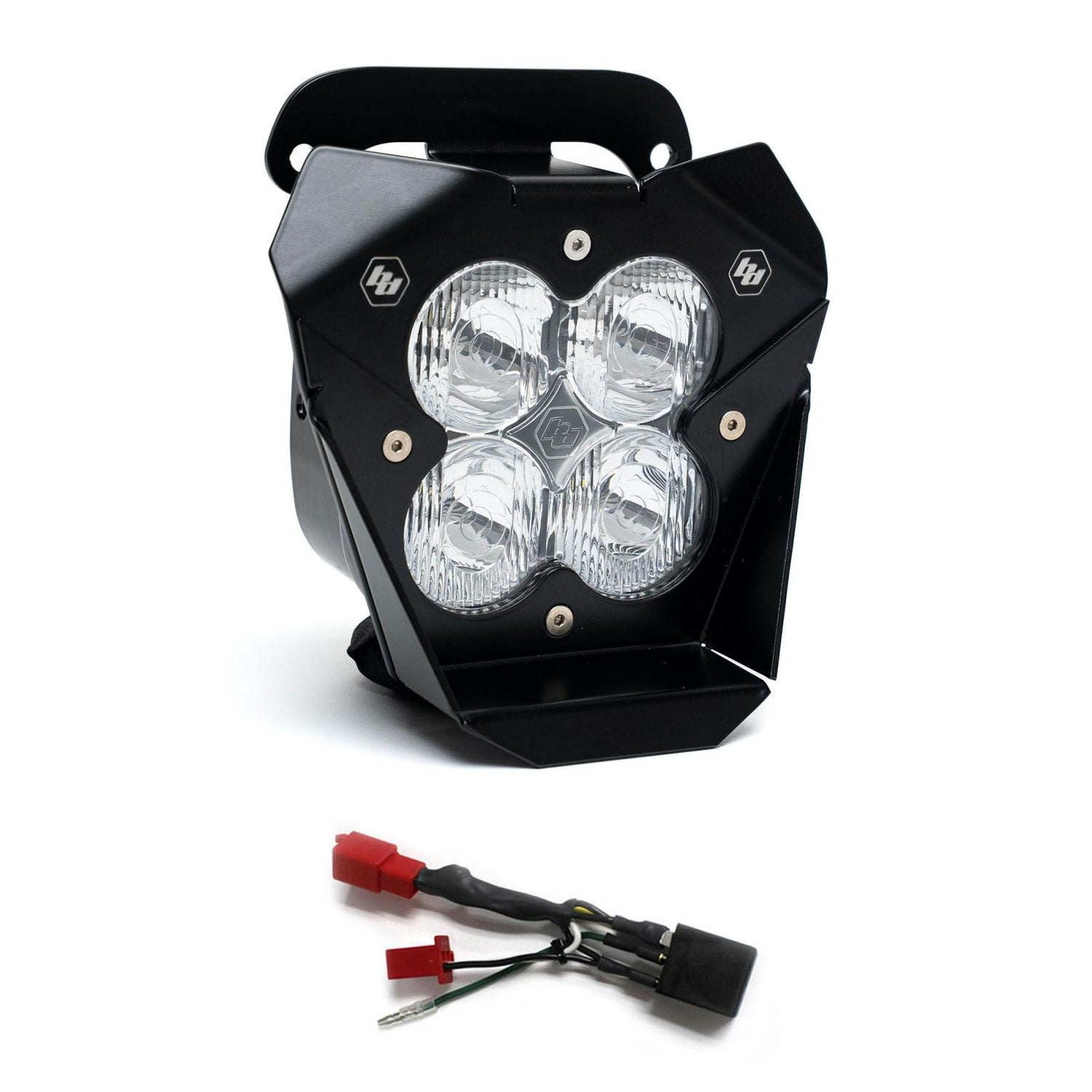

Kit Includes:

  • (1x) XL40 (D/C) Trail Lens Clear
  • (1x) XL Faceplate
  • (1x) Hi/Low Harness (12-9016)
  • All Necessary Mounting Hardware

XL40 Specifications (per light):

  • Lumens: 5,224 (Hi)/ 1,435 (Low)
  • Watts/Amps: 43.5W/3.4A at 12.8V

XL40 ELS Score:

  • XL40, Trail lens, high beam: 92 degree /5.9/226'/5224
  • XL40 Trail lens, low beam: 74 degree /5.9/119'/1435

The Baja Designs Advantage

  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Safely Driving LEDs at 100 Percent
  • 5000K Daylight Less Driver Fatigue, Natural Color
  • Specifications:
    • Product Type: XL40
    • Overvoltage Protection: Built-In
    • Mounting Hardware Included: Yes
    • Lighting Type: Forward Projecting
    • Lighting Technology: LED
    • Lighting Quantity: 4
    • Lighting Modes: Beam
    • Light Quantity: 1
    • Lens Material: Hardcoated Polycarbonate
    • Lens Color: Clear
    • Mounting Hardware Material: Stainless Steel
    • Universal or Specific: Universal
    • Wiring Harness Included: Yes
    • Wattage (W): 43.5
    • Housing Material: Powder Coated Cast Aluminum
    • Housing Color: Black
    • Description: Trail; Clear
    • Brightness (Lumens): 5,224 (Hi) / 1,435 (Low)
    • Bezel Material: Powder Coated Cast Aluminum
    • Beam Pattern: Trail
    • Average Rated Life (hr.): 49930
    • Amperage Rating (A): 3.4
    • Effective Lighting Score (ELS): High: 92 degree /5.9/226'/5224; Low; 74 degree /5.9/119'/1435
  • Standards & Compliance:
    • Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
    • Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
    • Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
  • Dimensions:
    • Weight (lbs.): 2.45
    • Length (in.): 4.43
    • Height (in.): 4.43
    • Depth (in.): 3.65
